Описание на продукта:

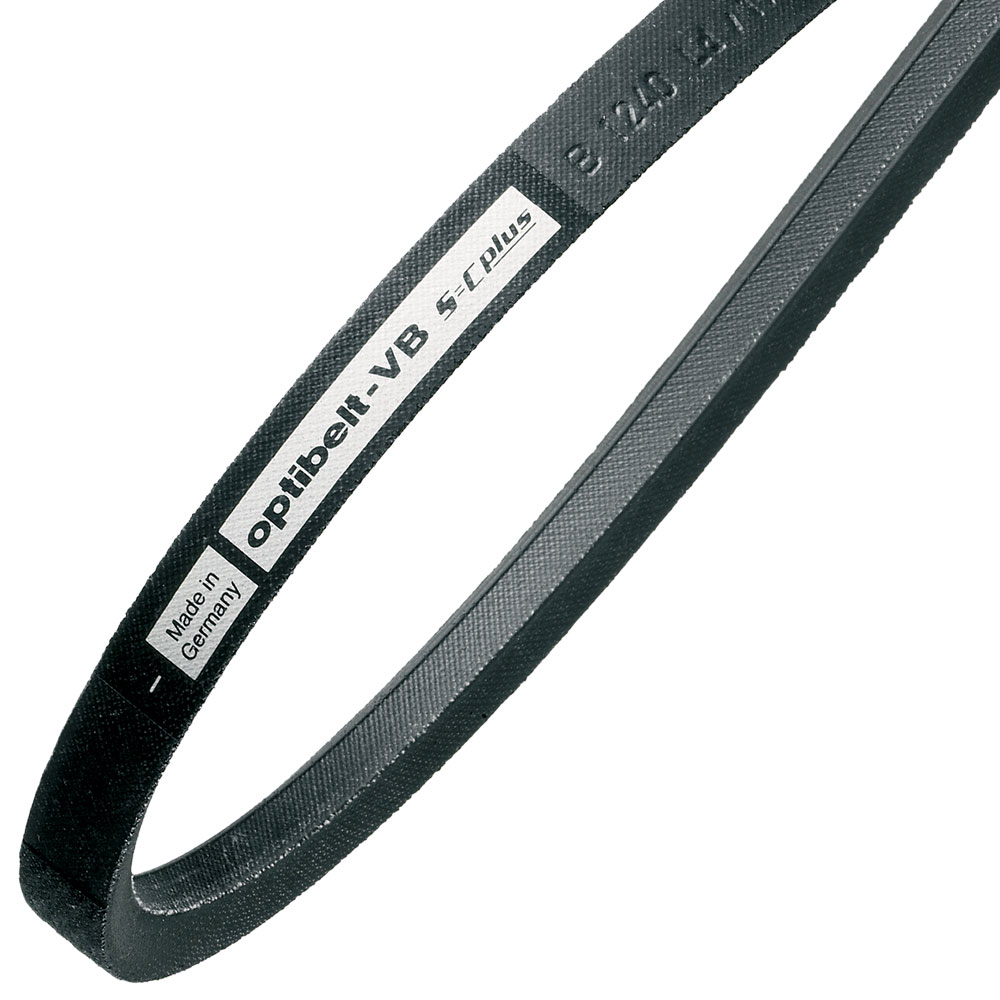

The classic among drive belts due to its universal use in industrial power transmission applications. Optibelt’s superior construction and manufacturing processes make the VB the preferred choice for companies looking for superior performance and lower maintenance costs over standard v-belts. Available in banded sizes.
Профили
XPZ, XPA, XPB, XPC, 3VX/9NX, 5VX/15NX
Дължини
Стандартни дължини от 587 до 3,550 mm
Profile sizes and Length range
| 5 | 200 – 610 mm |
| Y/6 | 295 – 865 mm |
| 8 | 335 – 1270 mm |
| Z/10 | 312 – 2522 mm |
| A/13 | 437 – 5030 mm |
| B/17 | 610 – 7140 mm |
| 20 | 950 – 6050 mm |
| C/22 | 1148 – 8058 mm |
| 25 | 1460 – 9060 mm |
| D/32 | 2075 – 11275 mm |
| E/40 | 3080 – 12580 mm |
Cord
Rubber coated polyester tension cords to fuse with belts core.
Rubber
Engineered polychloroprene top and core layer for increased durability.
Wrap
Fabric wrapped for increased grip strength and greater wear resistance. This specialized wrap is rubber impregnated to fuse with the belt’s core.
