Описание на продукта:

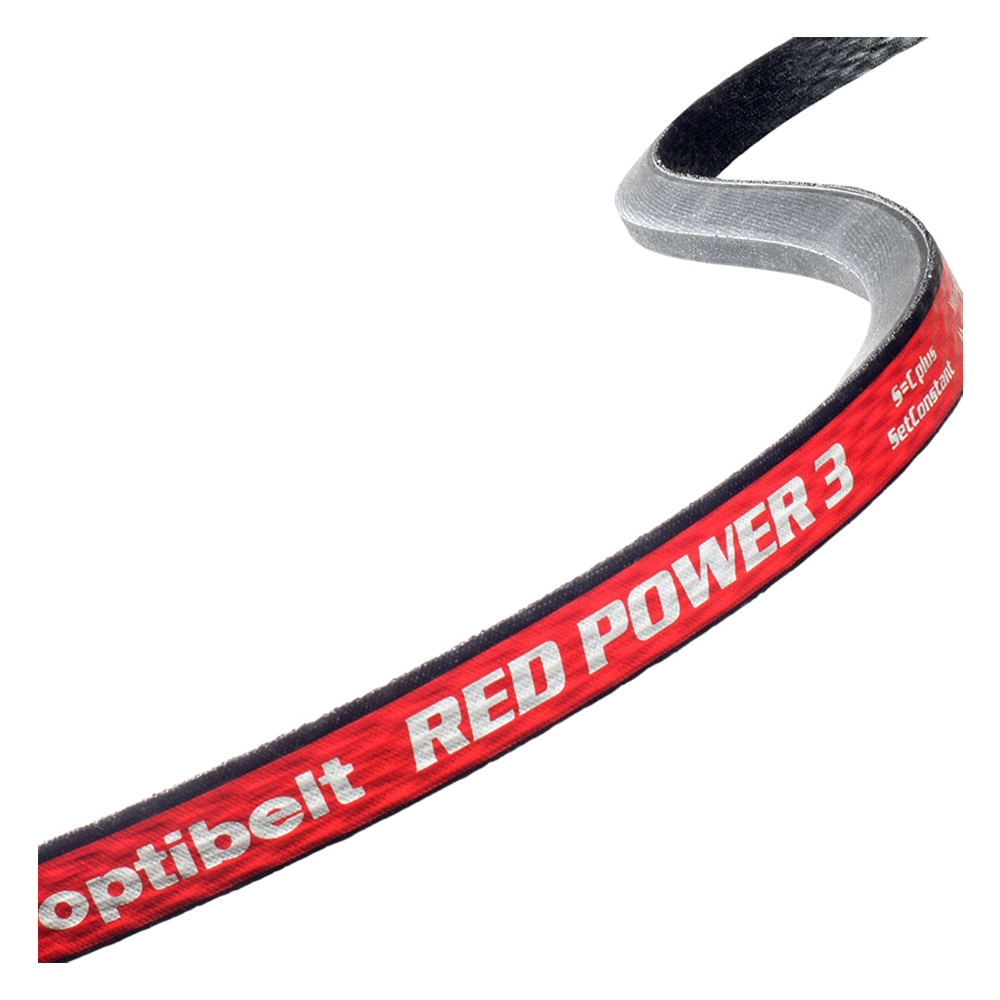

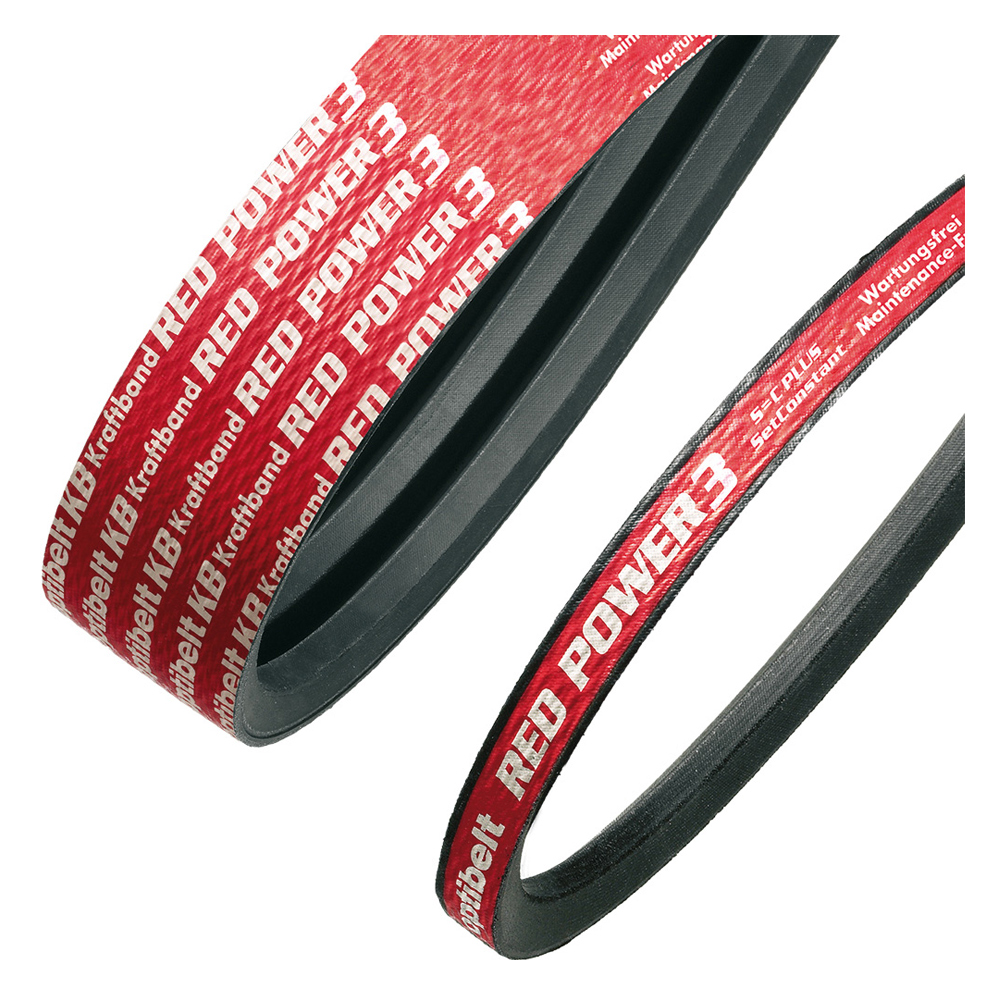

optibelt RED POWER v-belts feature a high modulus tension cord for a 50% increase in power capacity. These cords resist stretching over time making them maintenance-free and more energy efficient as tension loss decreases efficiency. It’s transverse fiber rubber compound increase the belts capacity to dissipate heat and stabilizes the belt in the sheave for up to 97% efficiency. Red Power also features Optibelt’s Set-Constant length tolerances that are far closer than any matched set, regardless of the date manufactured!
Профили
XPZ, XPA, XPB, XPC, 3VX/9NX, 5VX/15NX
Дължини
Стандартни дължини от 587 до 3,550 mm
Sections and lengths
| SPZ | 1202 – 3550 mm |
| SPA | 1207 – 4000 mm |
| SPB | 1250 – 8000 mm |
| SPC | 2000 – 10000 mm |
| 3V/9N | 47,5 – 140 in / 1206 – 3556 mm |
| 5V/15N | 53 – 315 in / 1346 – 8001 mm |
| 8V/25N | 100 – 475 in / 2540 – 12065 mm |
| further dimensions on request |

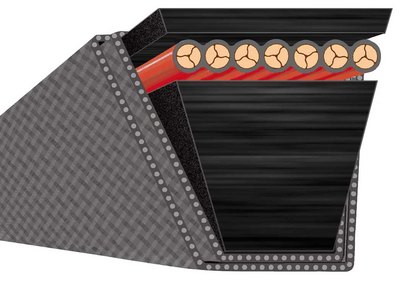

Cord
High modulus polyester tension cords resist stretching. This eliminates re-tensioning maintenance and substantially improves energy efficiency.
Rubber
Transverse fiber rubber provides added strength and allows for higher cord tension, which increases the belt’s power capacity.
Wrap
2X wrapped for increased grip strength and greater wear resistance. This specialized wrap is rubber impregnated and fused to the belt’s core rubber.
